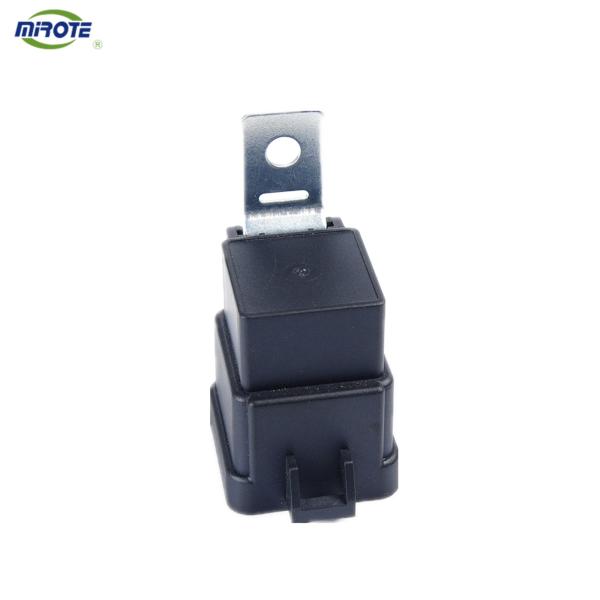

Multi-function DODGE CHRYSLER relay 56007078 56007078AB
1. Description
switching capability : 40A
Contact Form : 1 form A,1 form C
Cover : plastic sealed and dust protected tupes available

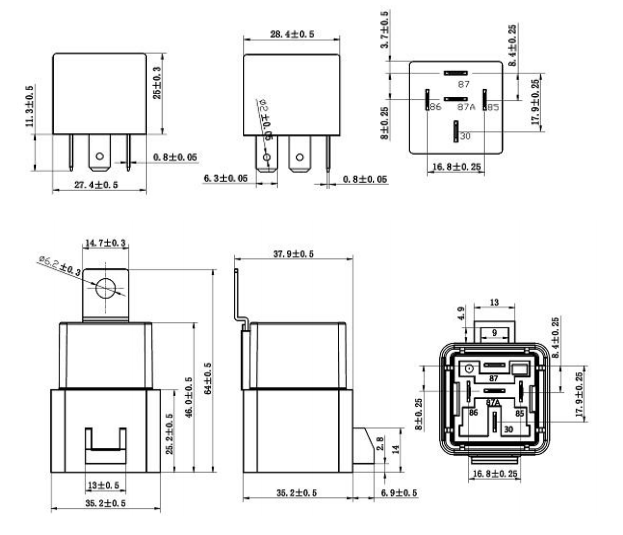

Outline dimensions : 35.2X35.2X46 mm
2.Specification
Features
The 4-Pin relays are SPST designed (Single Pole Single Throw), for circuit normally closed or normally open.
The relay sockets come with 4 different color-labeled wires for loads and accessories convenient wiring.
Unique male-female slot on each socket edge, allows you to connect all the relays together on a panel and make the whole installation neat as possible.
The automotive relay is an electronic control device, usually used in an automatic control circuit.
It has the function of automatic adjustment, safety protection, and conversion circuit.
It is in fact an "automatic switch" that controls a large current through a small current.
Suitable for all automobiles and devices equipped with a 12V DC power source. Greatly used for car lights, Indicator light, fog lamps, starter, wiper, fans, speakers, central locking, alarm, electric windows, etc.

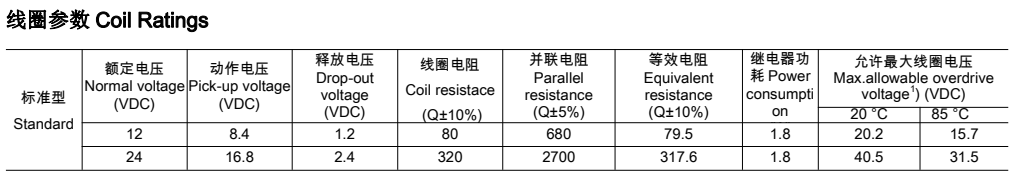

Relay Technical Specification
Relay load: 40A/12VDC
Contact Resistance: ≤ 100MΩ
Contact Material: Ag Alloy
Life Expectancy Electrical: 100,000 Operation
Life Expectancy Mechanical: 10,000,000 Operationss (at 300 Operations/min)
Coil power: 1.8W
Operate Time: ≤15ms
Release Time: ≤10ms
Initial withstand voltage of Contact and Contact: 1000VAC/1min
Initial withstand voltage of Contact and Coil: 1500VAC/1min
Insulation Resistance: 100MΩ/( 500VDC)
Temperature Range: -55°C ~+70°C
Humidity Range: 35%-80%
Atmospheric Pressure: 86-106KPa
Weight: 56g
3. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
4. Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.
5. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
