40A 250VAC 24VDC Coil JQX-58F Automotive Power Relay

Product Categories
Zhejiang Huiyou Auto Parts Co., Ltd.
Contact Now

40A 250VAC 24VDC Coil JQX-58F Automotive Power Relay

Brand Name : Mirote

Model Number : JQX-58F

Place of Origin : Ningbo, Zhejiang

MOQ : 100

Price : Negotiation

Payment Terms : T/T, , L/C, D/P

Supply Ability : 5000000pcs per month

Delivery Time : 20-35 WORK DAYS

Packaging Details : 1pc/box, 200pcs/CTN

Type : Power Relay

Rated Voltage [V : 24VDC

Number of Poles : 3

Size : 4.5 x 4.5 x 7.8cm

Weight : 158g

Power : 40A

External Material : Plastic, Metal

Contact Now

1.JQX-58F 40A 250VAC 24VDC coil Power Relay



2. Specification



Technical Specification



Insulation Resistance >1000mΩ (500VDC)
Dielectric Strangth Between Coil and Contacts > 2500VAC 1min
Between Open Contacts> 1200VAC 1min
Operate/Release time < 25ms/ 25ms
Terminal Type Screw



Contact Specification



Contact Form 1Z, 1H, 1D
Contact Resistance < 100mΩ (1A 6VDC)
Contact Material AgCdO, AgSnO2
Contact Capacity 40A 250VAC/30VDC



Coil Date



Nominal Voltage

VDC

Operate Voltage

VDC

Release Voltage

VDC

Coil Resistance

Ω + 10%

Nominal Voltage

VAC

Operate Voltage

VAC

Release Voltage

VAC

 Coil Resistance Ω+10%
6 4.80 0.60 18 6 4.80 1.80 14.4
12 9.60 1.20 72 12 9.60 3.60 57
24 19.20 2.40 288 24 19.20 7.20 250
48 38.40 4.80 1150 48 38.40 14.40 921
60 48.0 6.00 1800 110 88.00 36.00 5000
110 88.0 11.0 6050 220/240 176.00 72.00 19400/23070

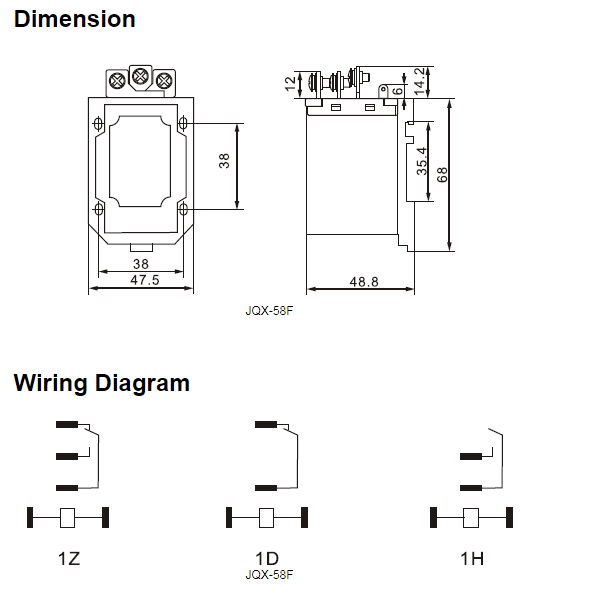

40A 250VAC 24VDC Coil JQX-58F Automotive Power Relay

3. Guarantee



To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.



4. Sample Policy



To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.



5. Terms of payment


T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



6. Delivery time


Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
