1Z 120A 250VAC 30VDC Coil JQX-62F Electromagnetic Industry Relay

Name: 1Z 120A 250VAC 30VDC Coil JQX62F Electromagnetic Industry Relay
Brand: MIROTE
Price: 1 USD

Buy cheap 1Z 120A 250VAC 30VDC Coil JQX-62F Electromagnetic Industry Relay product

Brand Name : MIROTE

Model Number : HY913

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiation

Payment Terms : L/C, T/T, D/P

Supply Ability : 200000pcs/week

Delivery Time : 15-30days

Contact Form : 1Z

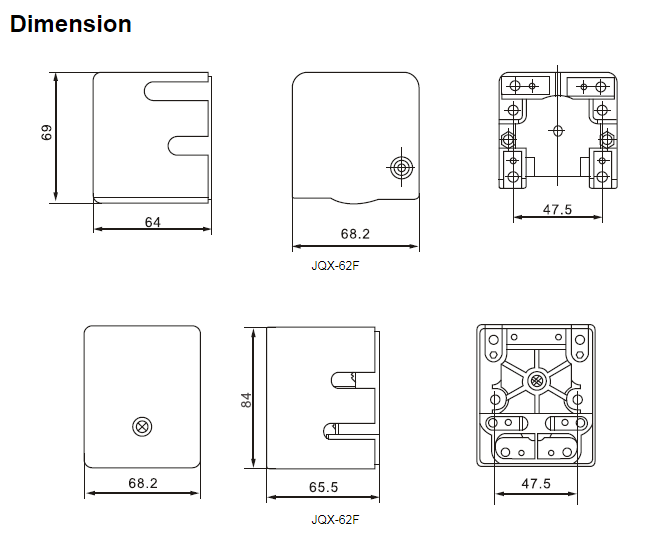

Size : 63.5 x 63.5 x 56

Contact Material : Silver Alloy

Contact resitance : ≤100MΩ(1A 6VDC)

Contact capacity : 120A 250VAC/30VDC

Power Relay: JQX-62F 1Z 120A Coil voltage : 6, 12, 24, 48, 60, 110VDC

Contact Now

1Z 120A 250VAC 30VDC Coil JQX-62F Electromagnetic Industry Relay

1. Specification

Coil Specification
Rated coil power	DC2.0W AC4VA

Technical Specification
Insulation resistance	≥1000MΩ(500VDC)
Ambient temperature	-40℃～+70℃(No condensation)
Dielectric strength	BCC ≥2500VAC 1min
Dielectric strength	BOC ≥1000VAC 1min
Operate / Release time	≤40ms/25m
Terminal type	Screw mounting

Coil Data
Nominal voltage VDC	Operate voltage VDC	Release voltage VDC	Coil resistance Ω±10%	Nominal voltage VAC	Operate voltage VAC	Release voltage VAC	Coil resistance Ω±10%
6	4.80	0.60	18	6	4.80	1.80	9
12	9.60	1.20	70	12	9.60	3.60	36
24	19.20	2.40	290	24	19.20	7.20	144
48	38.40	4.80	1152	48	38.40	14.40	576
60	48.00	6.00	1800	110	88.00	36.00	3025
110	88.00	11.00	6050	220/240	176.00	72.00	12000/14400

2.
1Z 120A 250VAC 30VDC Coil JQX-62F Electromagnetic Industry Relay

Changeover Type (Z):

In the middle there is a moving contact, when the coil is not energized, the moving contacts will be disconnect and one of the static contacts will be closed. After the coil is energized, the moving contact will move, makes the original broken change to closed state, and original closed state changed to disconnected state, to achieve the purpose of conversion.

Normally Open Type (H):

The contact is disconnect state when coil is not energized, and contact will be closed when coil is energized.

Normally Closed Type (D):

The contact is closed state when coil is not energized, and contact will be disconnected when coil is energized.

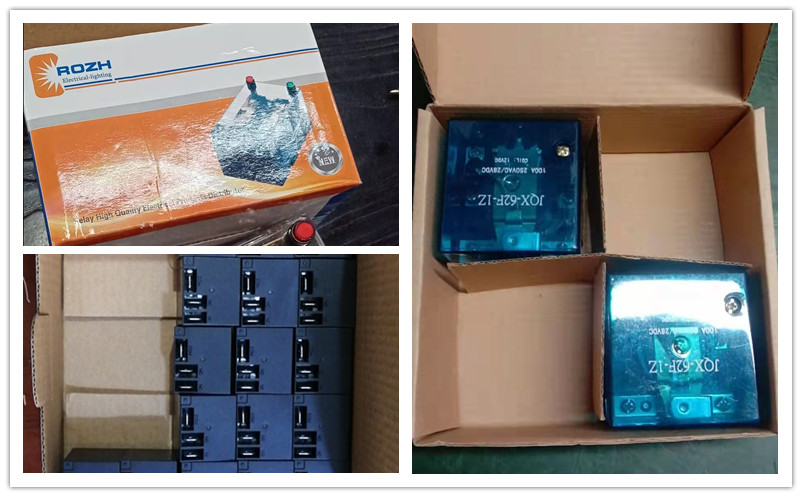

3. Package
1Z 120A 250VAC 30VDC Coil JQX-62F Electromagnetic Industry Relay

4. Related Product

1Z 120A 250VAC 30VDC Coil JQX-62F Electromagnetic Industry Relay

5. Guarantee

To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
